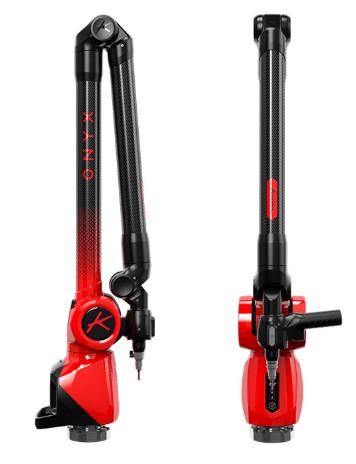

Onyx – Portable Measuring Arm CMM



---





The Onyx articulated measuring arms are portable three-dimensional coordinate measuring machines (Portable CMMs).



The Onyx arm stands out due to its exceptional capabilities, resulting from a design based on cutting-edge technologies. The main benefits include:



1. First, the use of high-resolution encoders provides the highest accuracy in the entire Kreon measuring arm range.

2. Second, the presence of multiple carbon-fiber structural components makes the arm significantly lighter, improving user comfort during operation.

3. Third, the simplified yet more rigid assembly of the Onyx arm makes it extremely reliable and durable, ensuring flawless measurement results even in the most demanding environments.



As a physical characteristic, it is efficient, ergonomic, and reliable, combining all qualities to deliver full confidence in 3D inspections with optimal productivity.

.

When combined with Skyline high-end 3D scanners, the Onyx measuring arm becomes a high-performance 3D scanning system.



Thanks to their speed, resolution, and precision, Skyline 3D scanners can scan all types of parts with record productivity. Blue laser technology and HD cameras allow scanning of a wide variety of surfaces, even the most difficult ones (glossy black, metallic, carbon), without loss of accuracy.



With Skyline scanners, there is no need to place markers on parts or use matting spray, resulting in significant time savings. As a result, industrial parts of any size can be easily scanned down to the smallest detail.





---

      (Agrandar)

 ¿Qué es un brazo de medición? Los brazos de medición articulados son máquinas de medición tridimensional portátiles que permiten obtener mediciones de alta precisión. Estos equipos combinan dos tecnologías: la medición por contacto, mediante un palpador que toma puntos sobre la pieza, y la medición sin contacto, utilizando un escáner 3D que captura la geometría completa del objeto. ofreciendo flexibilidad y exactitud en aplicaciones de control de calidad, ingeniería inversa y metrología industrial.

Los brazos de medición es equipo portátil de medición tridimensional que obtiene mediciones de alta precisión. Estos equipos combinan dos tecnologías: la medición por contacto, mediante un palpador que toma puntos sobre la pieza, y la medición sin contacto, utilizando un escaner 3D.
