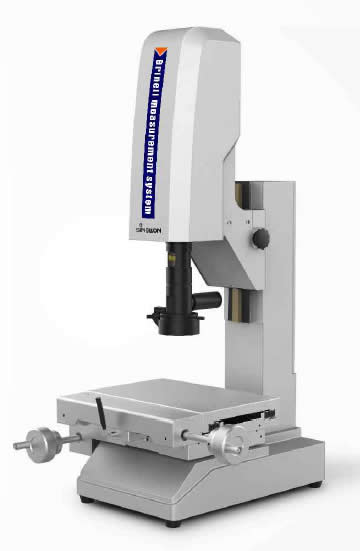

QB-500 High Precision Brinell Optical Measuring System

---

  ......

.

The high-precision Brinell optical measurement system QB-500 is mainly used to verify the accuracy of hardness blocks for manufacturers and calibration laboratories. It is also suitable for measuring Brinell indentations on test samples.



Features:

• Equipped with telecentric zoom lenses, enabling accurate measurement of Brinell indentations on both mirror-finish and rough surfaces
• High-precision microscope stage with a travel range of 100 × 50 mm, supporting sample weights of up to 15 kg
• Non-contact optical measurement with laser guidance for easy and precise indentation positioning
• Performs automatic measurements using BrinScan V2.0 software





---



    (Agrandar)







¿What is High-Precision Brinell Optical Measurement, What is it Used For, and What Are Its Advantages?



Brinell optical measurement is a reliable method used to determine the true hardness of a material. It consists of pressing a hard metal ball (spherical indenter) into the surface of the material and then measuring the diameter of the indentation it leaves.



Thanks to this technique, a more accurate and representative hardness value is obtained, especially for materials that are difficult to evaluate using other methods.

This method is widely used in:



• Verification of hardness reference blocks
• Testing of coarse-grained or irregular-structure materials
• Analysis of coatings such as galvanized, anodized, and other surface treatments



Main Purposes



🔹 Hardness determination
Calculates the Brinell hardness value (HB) based on the indentation size, allowing evaluation of a material’s resistance to penetration.



🔹 Quality control
Ensures that metallic materials and products meet established standards and specifications.



🔹 Material analysis
Ideal for coarse-grained, heterogeneous materials or those with surface treatments, where other hardness methods may be less reliable.



🔹 Equipment calibration
Brinell optical systems enable precise calibration of hardness blocks, ensuring the reliability of testing equipment.



Advantages of High-Precision Brinell Optical Measurement



✅ More representative results
The larger indentation better reflects the overall properties of the material.



✅ Lower sensitivity to imperfections
Less affected by scratches or surface irregularities, resulting in more accurate measurements.



✅ Advanced automation
Modern systems can automatically detect indentation edges and calculate hardness, even if the full indentation is not completely visible within the field of view.
